STEAKER AND
ROLLER SETS

PERFECTION MADE IN GERMANY

INDUSTRY

Our high-performance industrial machines leave nothing to be desired. With them, large quantities of meat can be processed without any problems.

GASTRONOMY

With our handy but powerful gastro steakers, you are perfectly positioned. Even for the shop area, our "quiet running" motors are perfectly suitable.

INDIVIDUAL

All our machines can be customised or configured differently according to the customer's wishes. Thus, we leave nothing to be desired and create a solution for every problem.

DIRECTLY TO THE ROLLER SETS

Steaker, strip cutter or flatter / tenderiser.
ROLLER SETS

-MANUAL-

HST 35

Technical data:
Weight kg 8
Dimensions mm 380x160x365
Dimensions of feed neck mm 200x30
BROCHURE

-EXTRA SILENT-

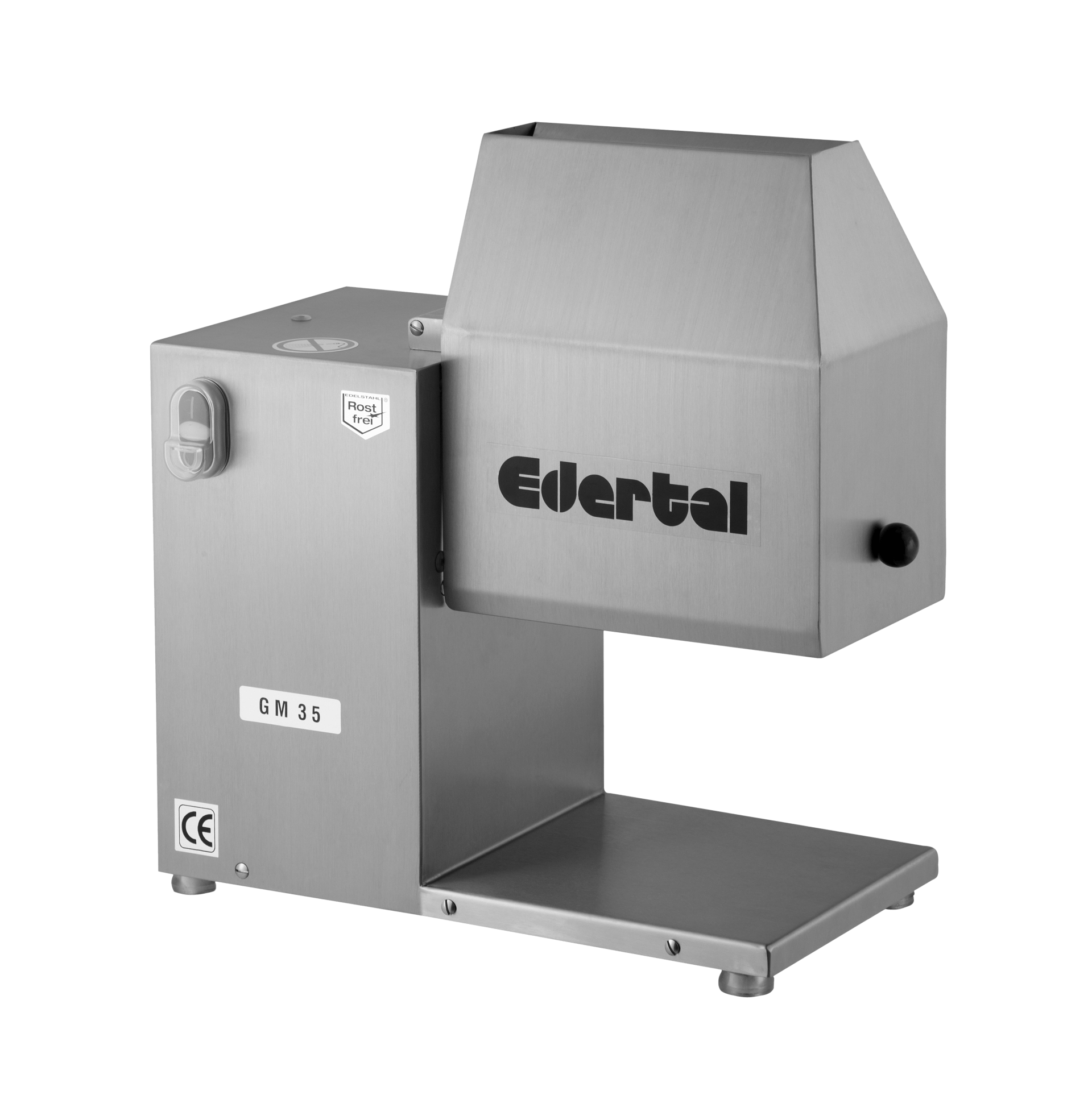

GM 35

Technical data:
Motor capacity Volt 230 / 400
kW 250 / 370
Rotations RPM 136
Retraction speed m/min 22
Weight kg 24
Dimensions mm 410x235x485
Dimensions of feed neck mm 200x30
BROCHURE

-BEST SELLER-

FM 35

Technical data:
Motor capacity Volt 230 / 400
kW 600
Rotations RPM 140
Retraction speed m/min 27
Weight kg 27
Dimensions mm 510x235x500
Dimensions of feed neck mm 200x30
BROCHURE

-ENGINE COOLING--

 FM 35 K

Technical data:
Motor capacity Volt 230 / 400
kW 600
Rotations RPM 140
Retraction speed m/min 27
Weight kg 28
Dimensions mm 510x235x545
Dimensions of feed neck mm 200x30
BROCHURE

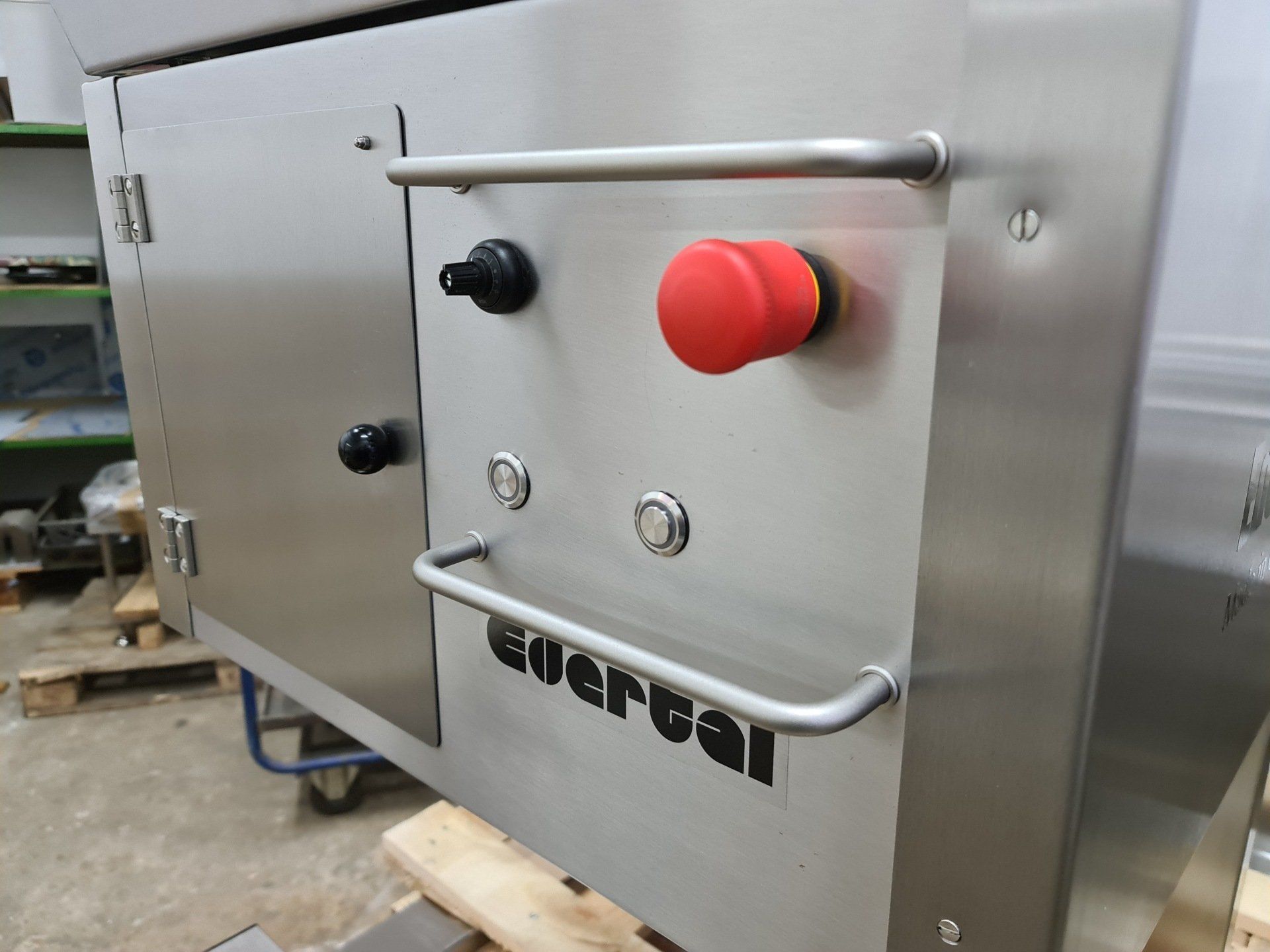

-ROTARY CONTROLLER-

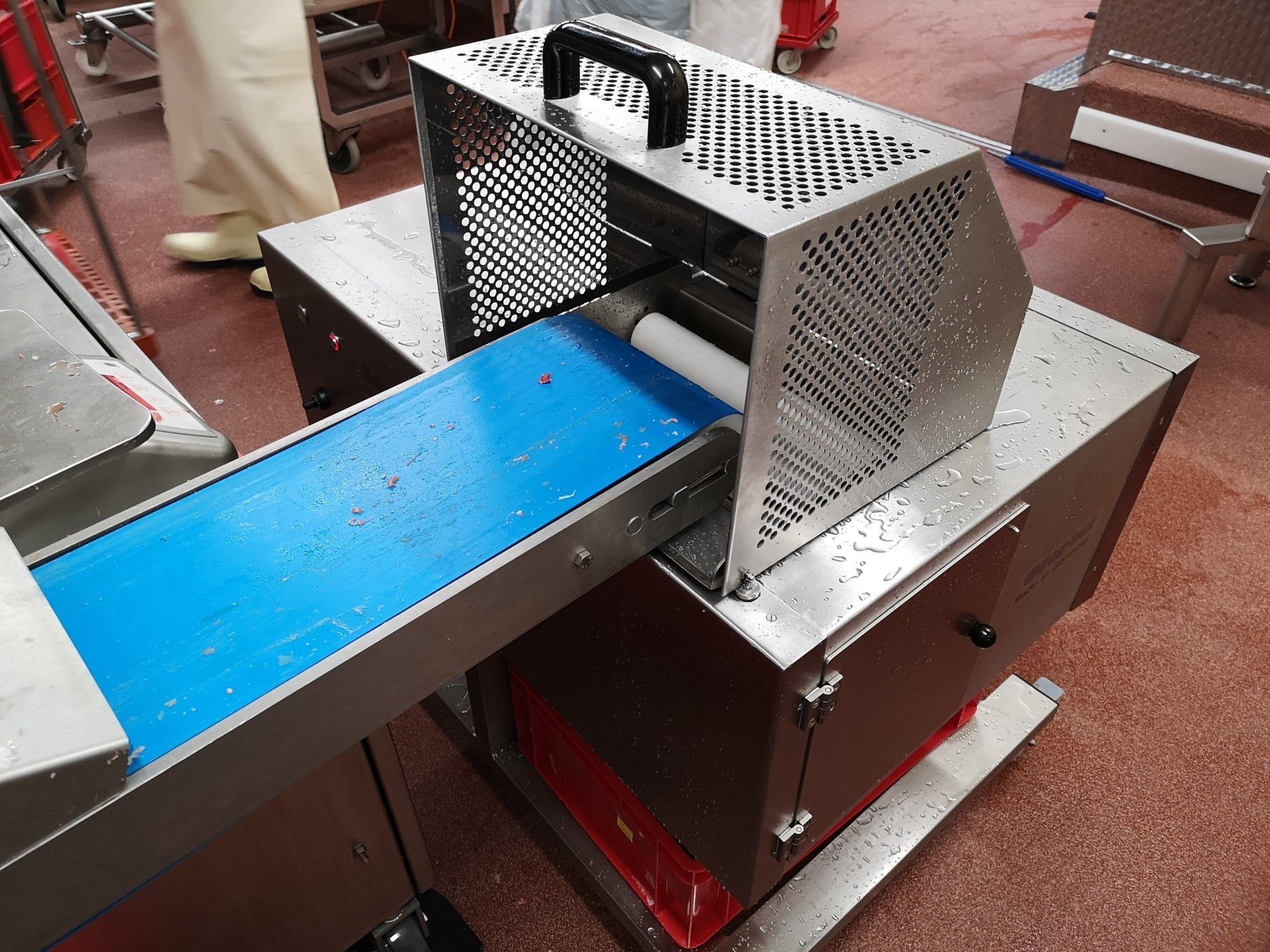

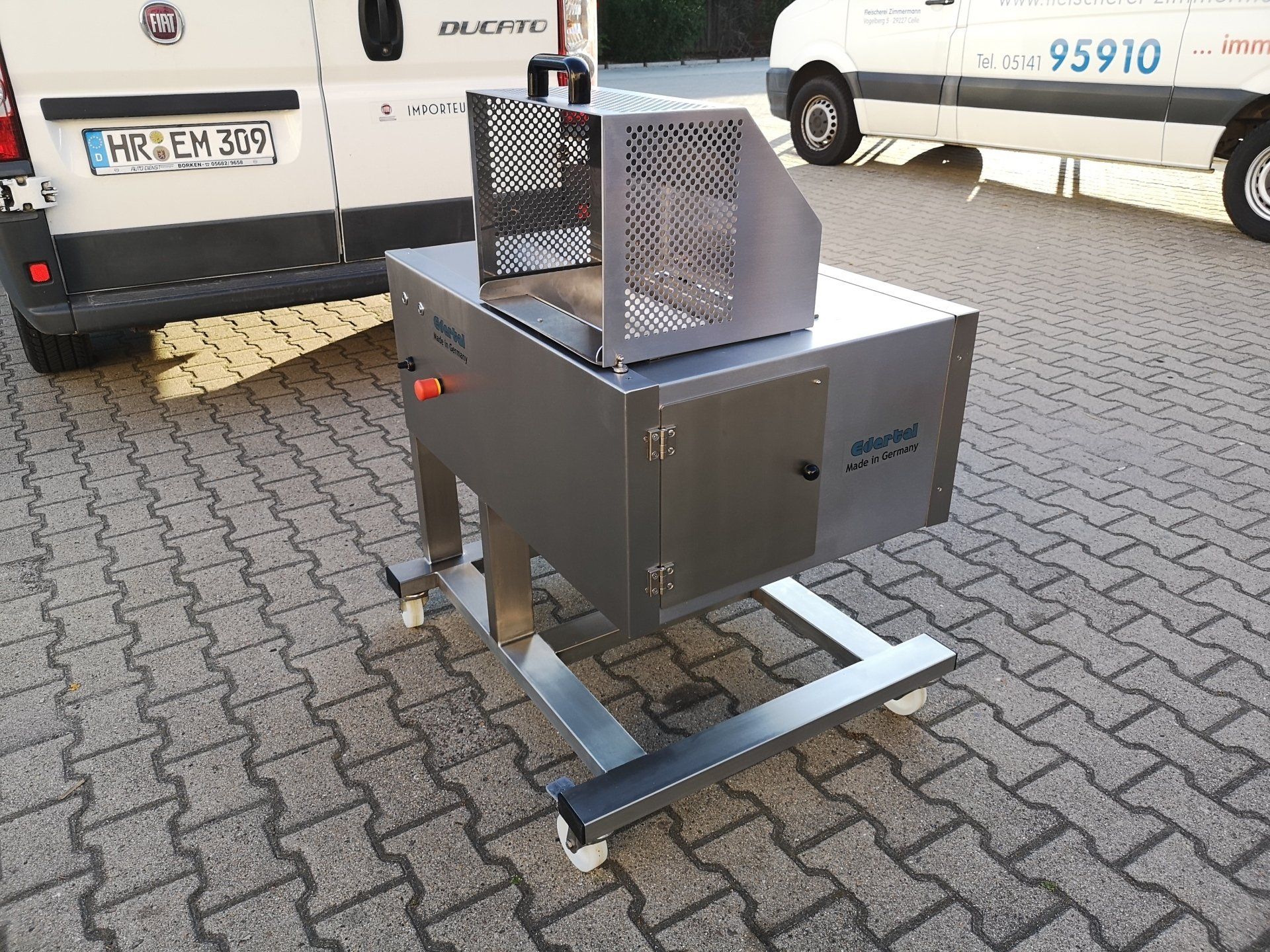

 IFM 350

Technical data:
Motor capacity Volt 230 / 400
kW 1500
Rotations RPM 80-150
Retraction speed m/min 13,7-25,8
Weight kg 120
Dimensions mm 900x880x1200
Dimensions of feed neck mm 350x30
BROCHURE

 FUNCTION VIDEO

Here you can watch the IFM 350 at work. The steaker is exactly the right machine for your production. Please do not hesitate to contact us if you have any questions.

ALWAYS THE RIGHT ROLLER SET

Steaker roller sets SWU / SWG

Our steaker roller sets are available with sharp or blunt knives.


Roller sets for -HST 35 / GM 35 / FM 35 / FM 35 K-

Working width: 160mm

-SWG (sharp)

-SWU (blunt)

-SWG-J


Roller sets for -IFM 350-

Working width: 350mm

-SWG (sharp)

-SWU (blunt)

-SWG-J


Strip cutting roller sets SSWD

Our strip cutting roller sets are available in many different sizes. All roller sets can be configured with extra chicken knives for difficult to feed material such as chicken meat.


Roller sets for -HST 35 / GM 35 / FM 35 / FM 35 K-

Working width: 160mm

-SSWD 3,3mm

-SSWD 4,8mm

-SSWD 6,8mm

-SSWD 9,6mm


Roller sets for -IFM 350-

Working width: 350mm

-SSWD 4,0mm

-SSWD 8,0mm

-SSWD 12,0mm

-SSWD 16,0mm

-SSWD 20,0mm

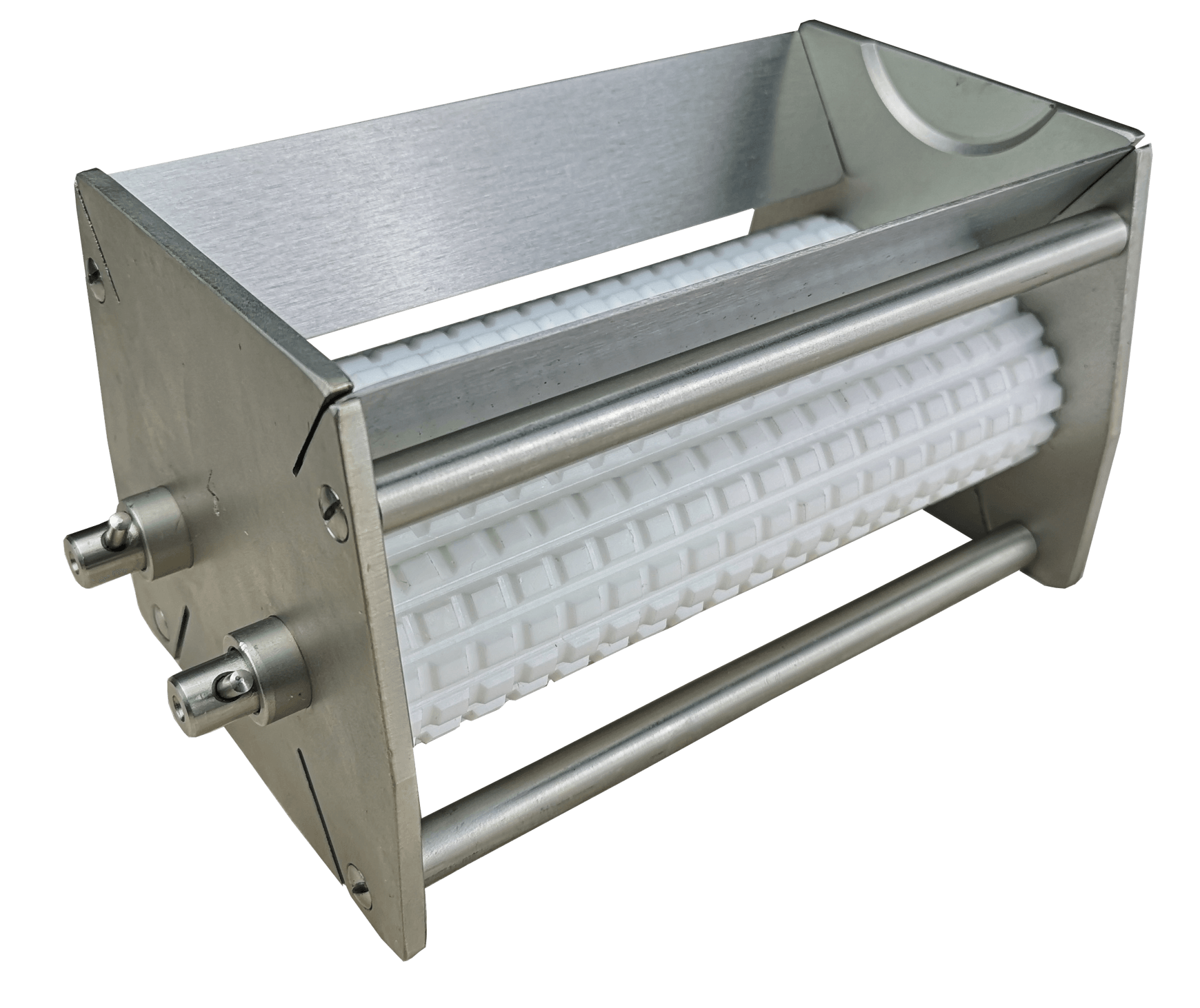

Flatterer / Tenderiser PMW

Our flattening and tenderising roller sets are available in two different sizes, depending on the size of the material to be processed.


Roller sets for -HST 35 / GM 35 / FM 35 / FM 35 K-

Working width: 160mm

-PMW 2mm (pieces up to 15mm wide)

-PMW 4mm (pieces from 15-22mm width)


Roller sets for -IFM 350-

Working width: 350mm

-PMW 2mm

-PMW 4mm

-PMW 6mm

-PMW 8mm

  • SWG / SWU

    SWG / SWU

    Button

  • SSWD

    SSWD

    Button

  • PMW

    PMW

    Button

  • Bildtitel

    SSG

    Button

  • Bildtitel

    SWG-J

    Button
